Movement No. U822

Online Instruction Manual

To use the alarm

You can set 2 alarms.

View in illustrations

  • 1

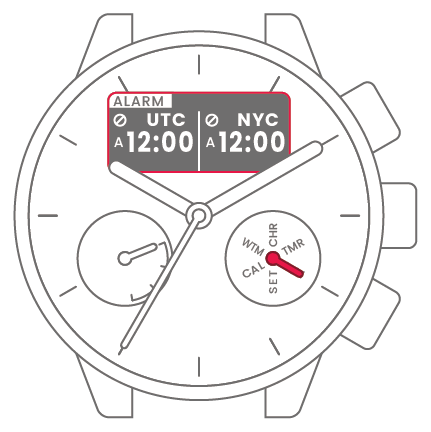

  • Switch to Alarm mode.

> To switch modes
> To switch modes
> To switch modes

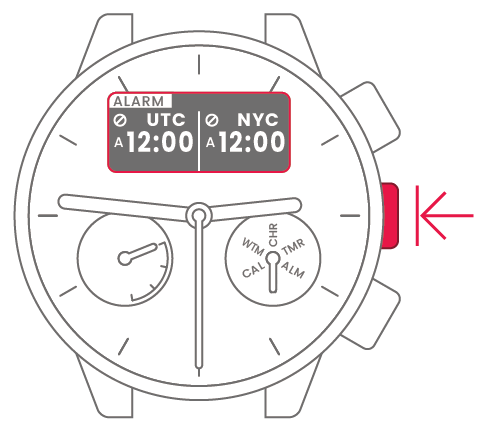

  • 2

  • Press and hold the center-right
    button for at least 2 seconds.

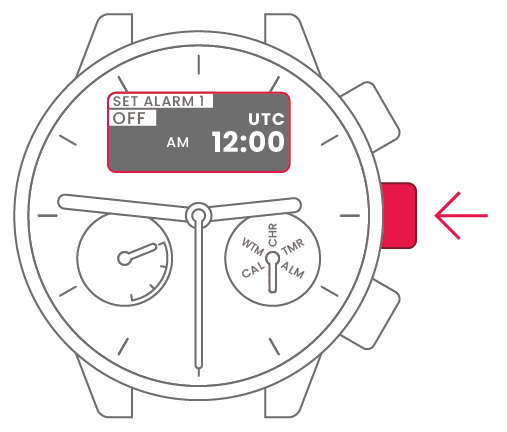

  • 3

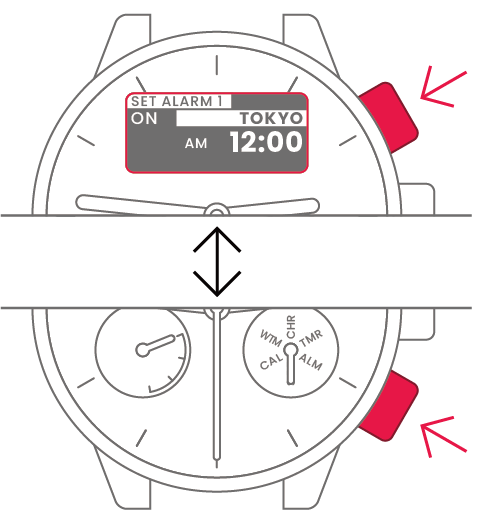

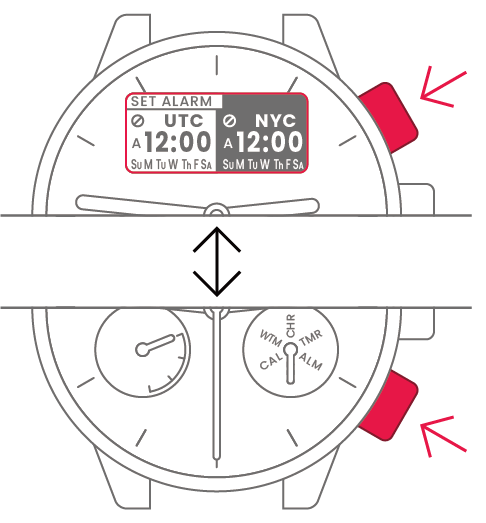

  • Press and release the lower-right
    or upper-right button to select
    alarm 1 or alarm 2.

  • 4

  • Press and release the
    center-right button to confirm
    the selected alarm.

  • 5

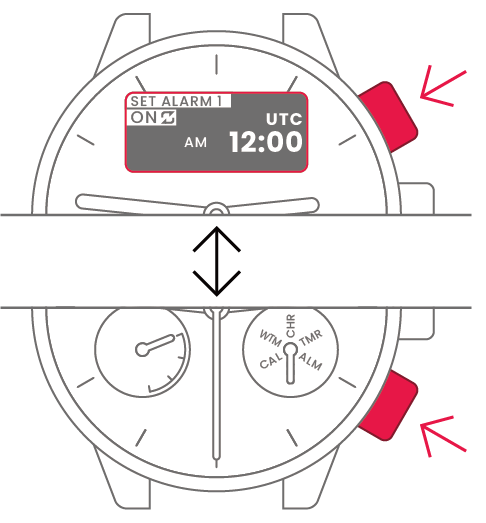

  • Press and release the lower-right
    or upper-right button to select
    whether an alarm tone will sound.

    • Select alarm mode
    • Sound only once
    • Sound repeatedly on a specified day
    • No alarm tone

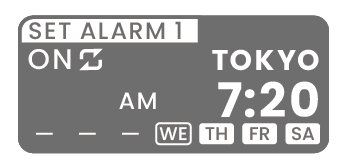

To set the alarm to sound just once at 7:20 am Tokyo time

  • 6

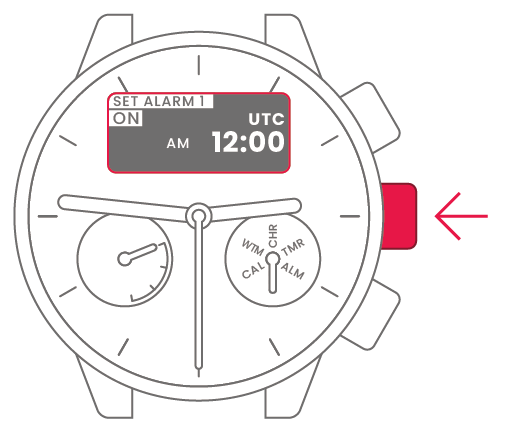

  • Press and release the
    center-right button to confirm
    whether an alarm tone will sound.

  • 7

  • Press and release the lower-right
    or upper-right button to select
    the region.

Hold down the button to continuously change between regions.

  • 8

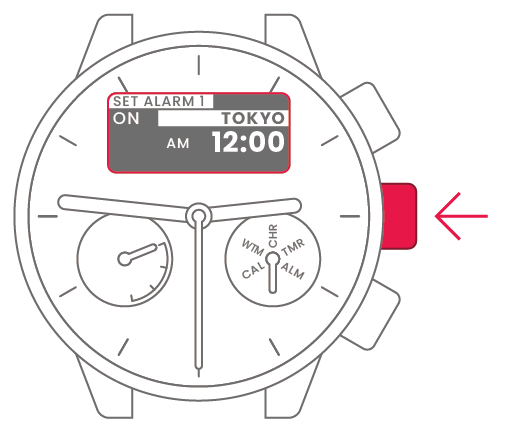

  • Press and release the
    center-right button to confirm
    the selected region.

  • 9

  • Press and release the lower-right
    or upper-right button to change
    the time when the alarm sounds.

Hold down the button to continuously change the number.

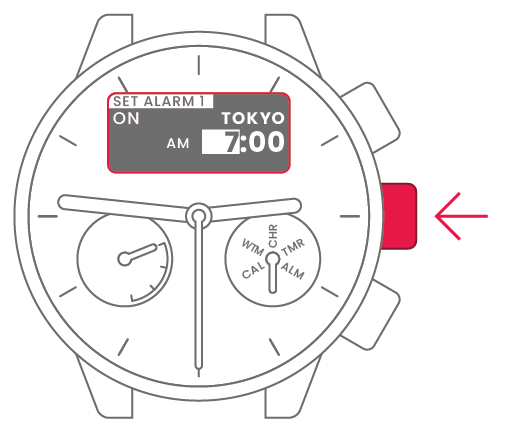

Press and release the center-right button to confirm the selected time.

Hour Press and release upper-right or lower-right button to change.
Center-right button
Minute Press and release upper-right or lower-right button to change.
Center-right button

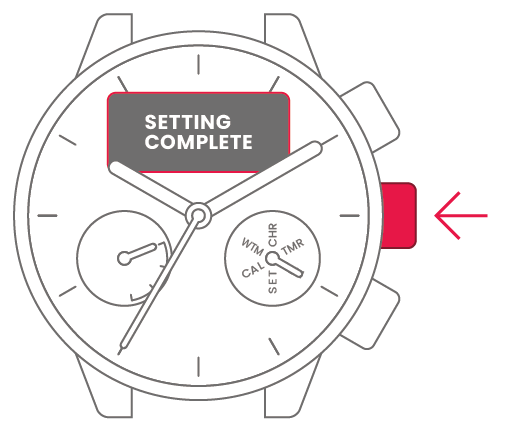

“SETTING COMPLETE” appears and alarm setting is complete.

The watch now shows the current time.

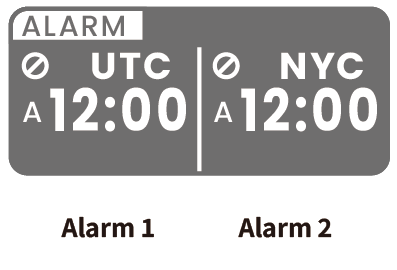

Alarm 1 set
Alarm 2 set
Alarm not set
Alarm set

When the set time is reached, the alarm tone sounds for 15 seconds.

Press and release any button to stop the tone.

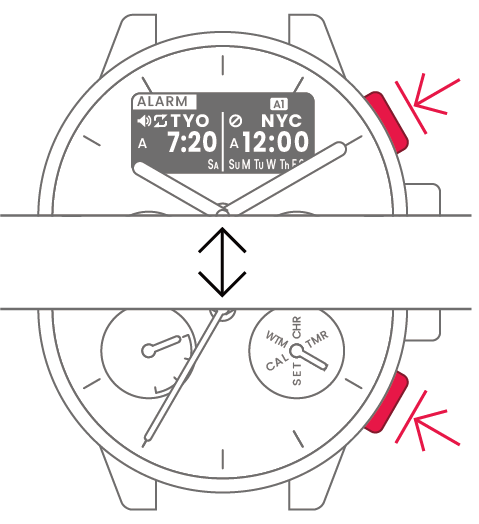

To check the alarm tone

Hold down the lower-right or upper-right button.

Hold down the lower-right button to play the tone for alarm 1.

Hold down the upper-right button to play the tone for alarm 2.

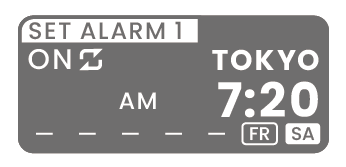

To set the alarm to sound repeatedly every Saturday at 7:20 am Tokyo time

  • 6

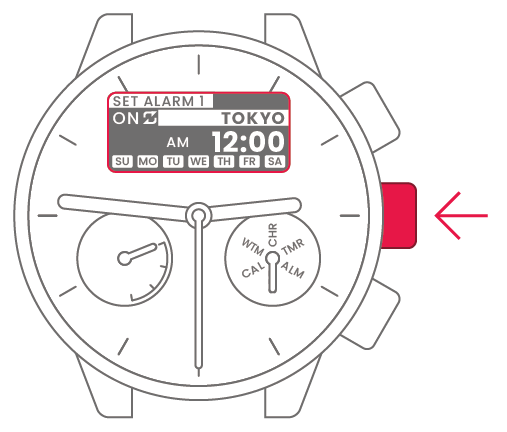

  • Press and release the
    center-right button to confirm
    whether an alarm tone will sound.

  • 7

  • Press and release the lower-right
    or upper-right button to select
    the region.

Hold down the button to continuously change between regions.

  • 8

  • Press and release the
    center-right button to confirm
    the selected region.

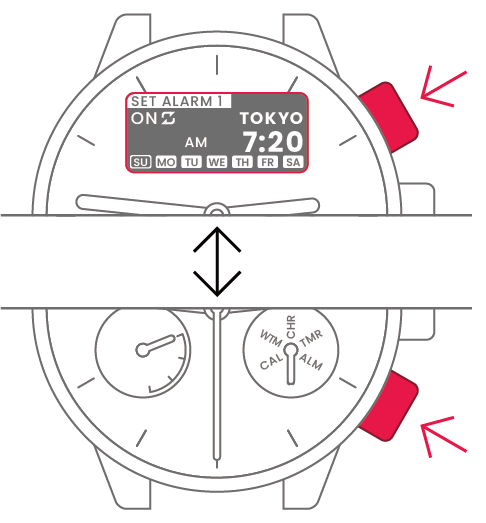

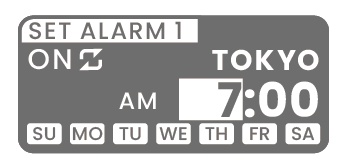

  • 9

  • Press and release the lower-right
    or upper-right button to change
    the time when the alarm sounds.

Hold down the button to continuously change the number.

Press and release the center-right button to confirm the selected time.

Hour Press and release upper-right or lower-right button to change.
Center-right button
Ｍinute Press and release upper-right or lower-right button to change.
Center-right button

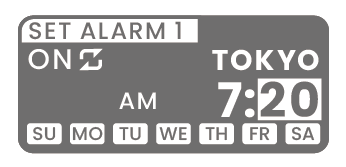

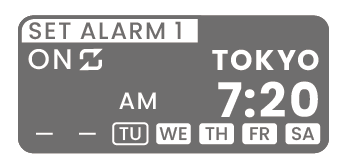

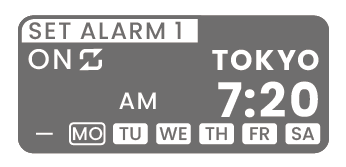

  • 10

  • Press and release the lower-right
    or upper-right button to select
    the day of the week (whether the
    alarm tone will sound).

Sounds on Sunday
Sounds on Monday
Sounds on Tuesday
Sounds on Wednesday
Sounds on Thursday
Sounds on Friday
Sounds on Saturday
No alarm tone

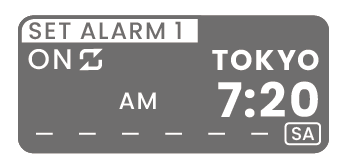

Press and release the center-right button to confirm the day of the week (whether the alarm tone will sound).

Sunday Press and release upper-right or lower-right button to change.
Center-right button
Monday Press and release upper-right or lower-right button to change.
Center-right button
Tuesday Press and release upper-right or lower-right button to change.
Center-right button
Wednesday Press and release upper-right or lower-right button to change.
Center-right button
Thursday Press and release upper-right or lower-right button to change.
Center-right button
Friday Press and release upper-right or lower-right button to change.
Center-right button
Saturday Press and release upper-right or lower-right button to change.
Center-right button
Setting complete

The watch now shows the current time.

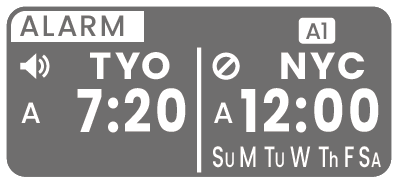

Alarm 1 set
Alarm 2 set
Alarm not set
Alarm set

When the set time is reached, the alarm tone sounds for 15 seconds.

Press and release any button to stop the tone.

To check the alarm tone

Hold down the lower-right or upper-right button.

Hold the lower-right button down to play the tone for alarm 1.

Hold the upper-right button down to play the tone for alarm 2.

  • 6

  • Press and release the
    center-right button to confirm
    whether an alarm tone will sound.

“SETTING COMPLETE” appears and alarm setting is complete.

The watch now shows the current time.
