Movement No. U822
Component Roles

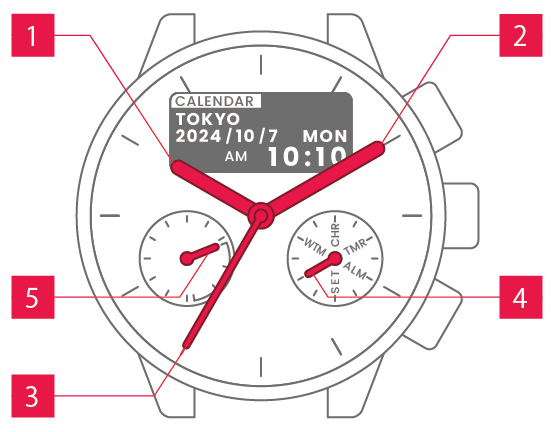

Time display
 Hour hand
|
Shows the hour. |
 Minute hand
|
Shows the minute. |
 Second hand/chronograph second hand |
Shows the second or chronograph second. |
 Mode hand/chronograph minute hand |
Shows the mode or chronograph minute. |
 Power reserveindication hand/chronograph hour hand |
Shows the power reserve or chronograph hour. |
Other displays

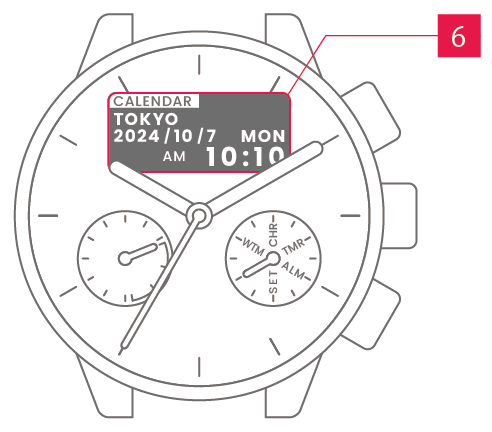

 LCD indication
|
Displays information. |

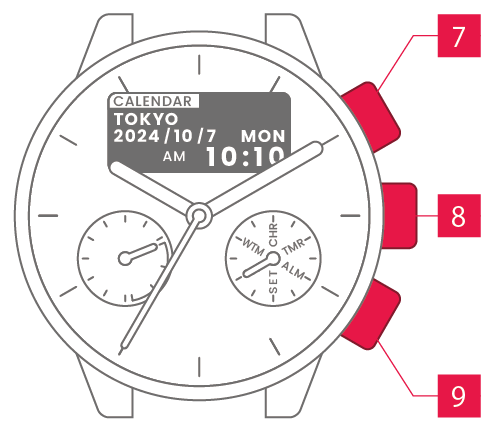

Operation (buttons)
 Button C
|
Upper-right button |
 Button B
|
Center-right button |
 Button A
|
Lower-right button |
Hidden buttons
On some models, there are hidden buttons.
Press them using a toothpick or similar implement that will not scratch the watch.

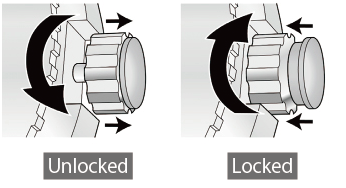

Screw-lock buttons
The buttons on some models can be screw-locked to prevent unintended operation.
To apply the screw-lock, press the screw section inwards while turning it.
